Overview
Assemblies are groups of Parts referenced by a specially marked Part. They can be used to streamline the proposal building process.
This article will review:
Settings and Navigation

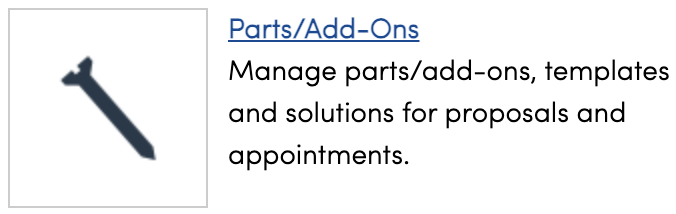

Go to Control Panel > Parts > Edit or Add.
Build an Assembly
It takes two steps to build an assembly and both are done without leaving Parts.
1) Create your Parts
Create a new Part and give it the name that will represent the new assembly. Also create any other parts that will be included in this assembly.

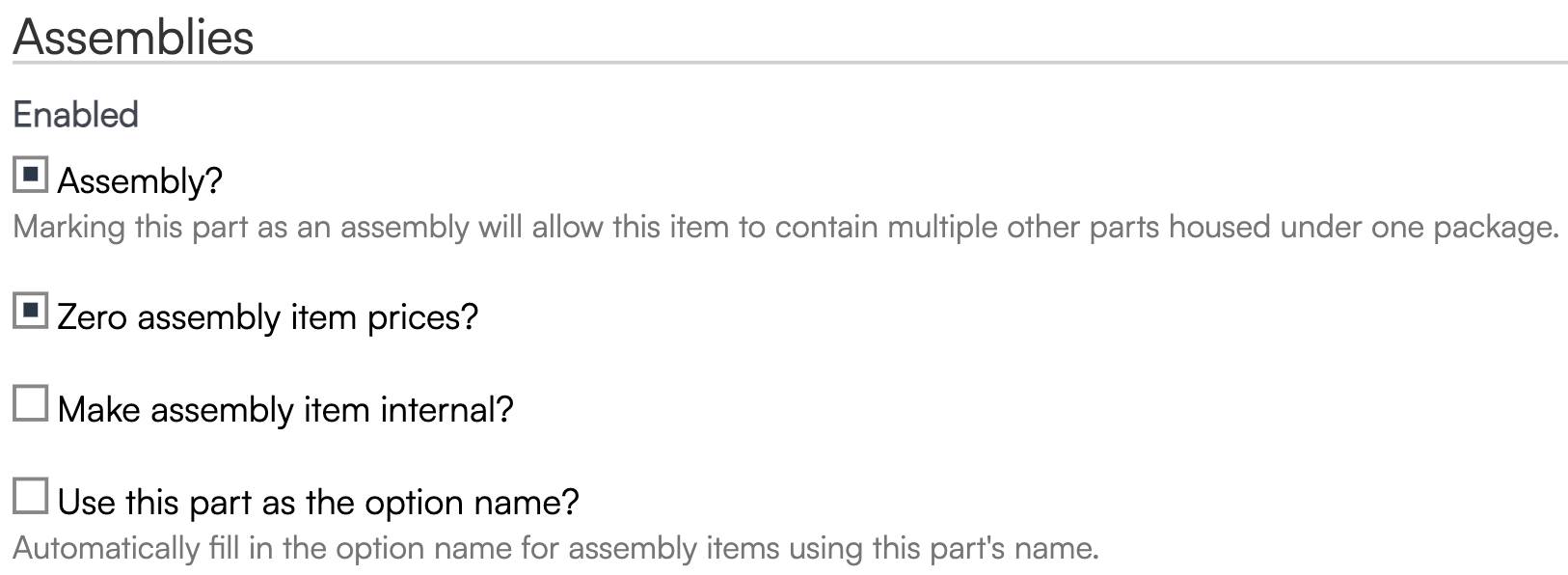

Save that new Part, then click Edit. Now when you scroll down, you'll see an Assembly checkbox. Check that to open up the assembly builder section.
The Zero Assembly Item Prices checkbox is for when the individual parts you add have prices but you don't want to use those prices. You can then set a price for the entire assembly. If you do want to include the individual part prices, then make sure that box is not checked and just use 0 for the price on the assembly.
Make Assembly Item Internal sets it so that the price is added to the total of the proposal but the line item does not display for the customer to see.

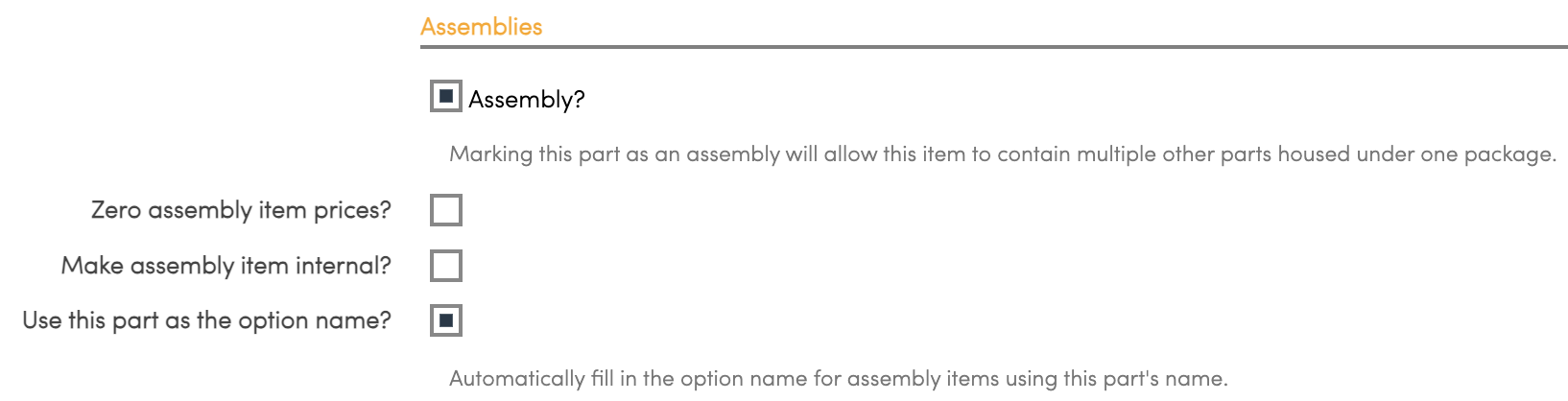

Use this part as the option name automatically fills in the name of this part as the name of Option on the proposal. This will group all items together into an option that can be included or declined by the customer when accepting the proposal.
2) Add Parts to Assembly

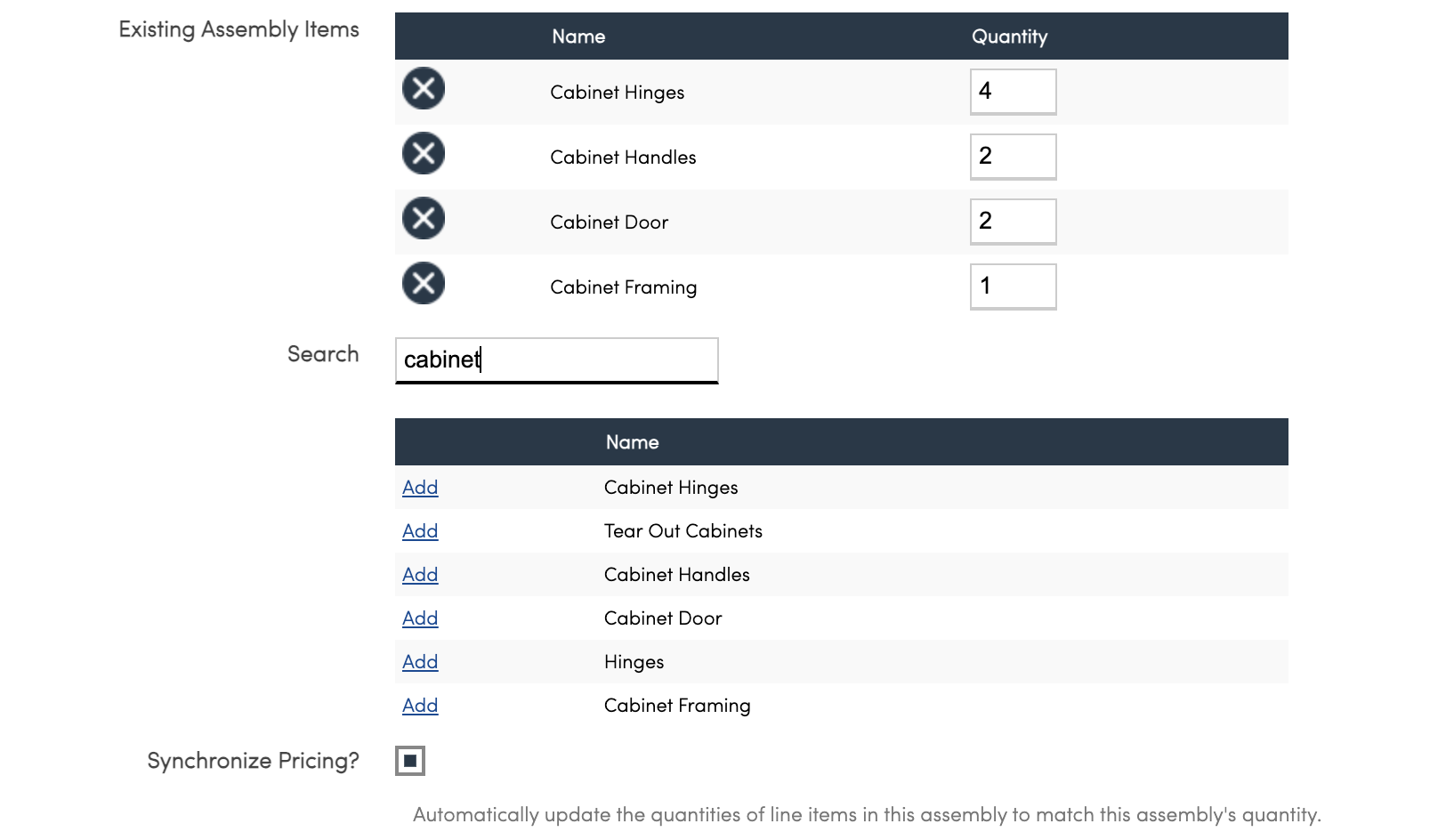

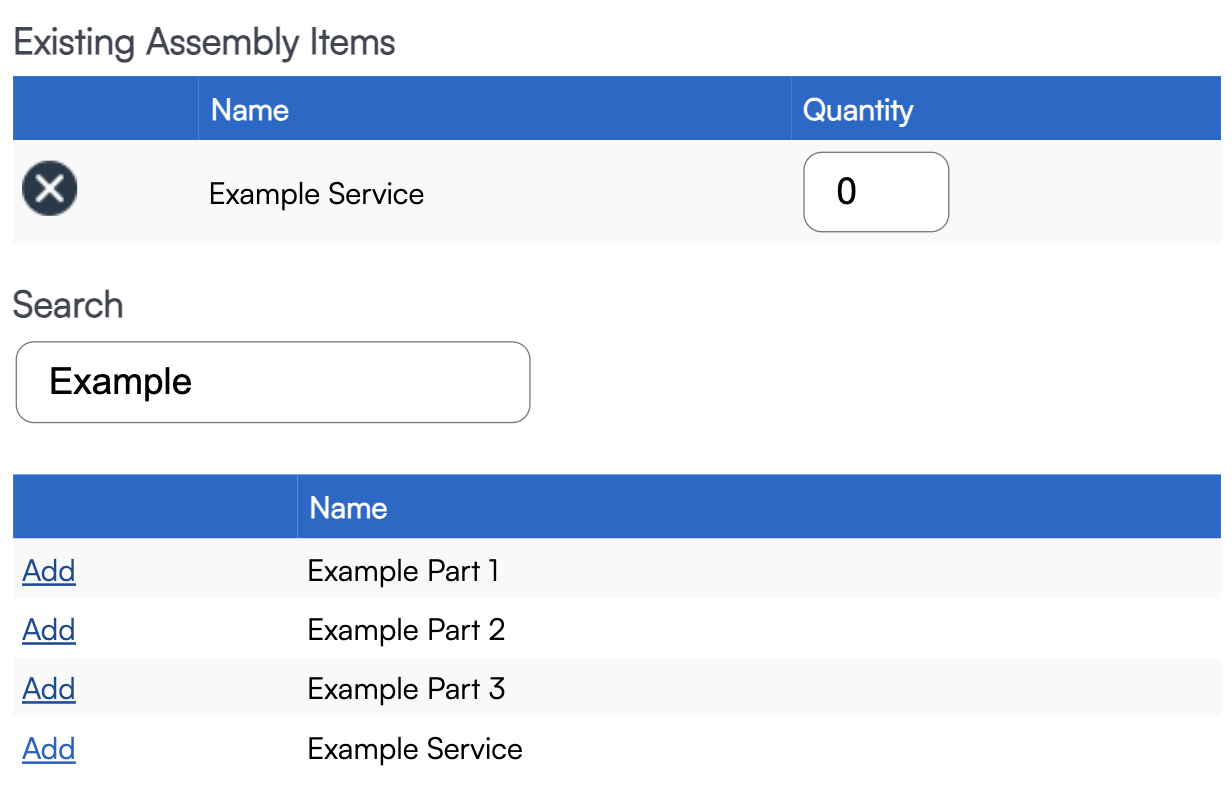

Use the search box to select new Parts to add to this assembly. The search triggers as soon as you type in at least 3 characters. Click Add next to the matching part you want to include. You can then put in a Quantity.
If the parts in this assembly have pricing that doesn't change from proposal to proposal, then make your job easier by checking the Synchronize Pricing checkbox.
When you're done adding the Parts you want for this assembly, just Save the part. Now when you reference this Part as part of a Proposal, all of the included Parts in the assembly will be brought in also.
Add an Assembly to a Proposal

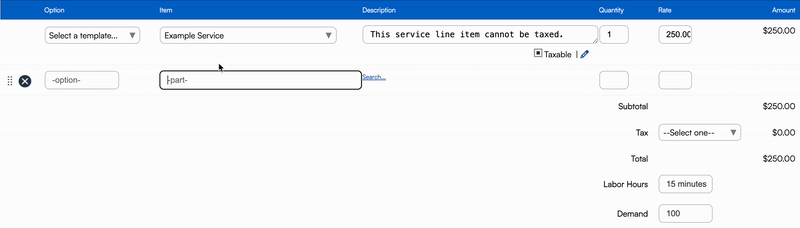

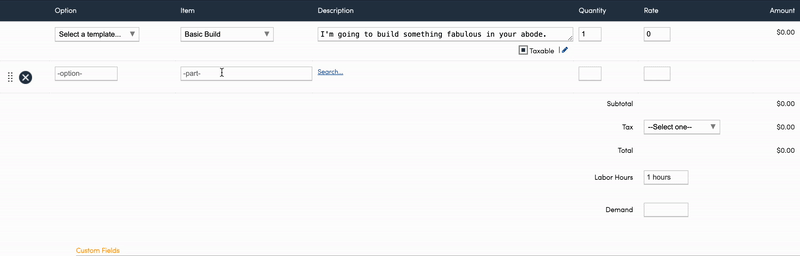

When creating your proposal, type in the name of the Assembly part you've created. It will automatically fill in the additional parts and assign the quantities that you designated.
If you have selected the option to use this part as the option name, it will label every part in the assembly as a part of that option. Learn more about Proposal Options here.
